10000kgf Electric Actuators with Long Strokes to Replace Fluid-Power Cylinders

Product Details:

X

Product Description

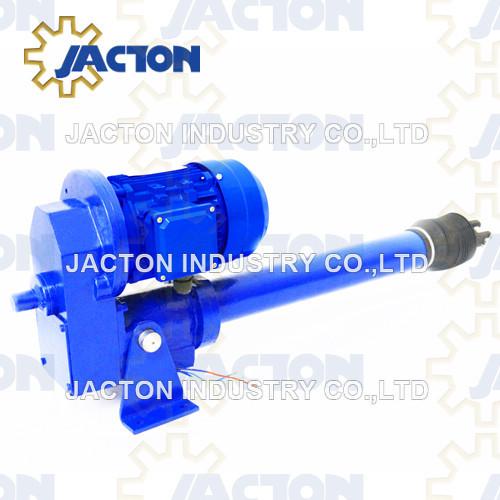

10000kgf electric actuators with long strokes to replace fluid-power cylinders Features

10000kgf electric actuators with long strokes to replace fluid-power cylinders is consist of electric motor or brake motor, acme lead screw, helical spur gearbox, thrust bearing housing, tapered roller thrust bearings, outer casing, screw support bearing, bearing support, wiper seal, inner ram, and clevis End. The acme lead screw converts rotary motion to linear movement. As the screw rotates, the nut extends and retracts the ram, which is attached to the load.


10000kgf electric actuators with long strokes to replace fluid-power cylinders features include heavy load capacity, high linear speed, long service life, low noise system, no oil leaks, contamination or fire risk, accurate and repeatable positioning using simplified system, easy synchronization, easy installation, no pipework, powerpack and valves, choice of end fittings like clevis, threaded end, top plate, trunnion mounting (with or without feet), proximity switches, guided ram (guiding the load side loads on the actuator ram should be avoided by ensuring that the load is guided), and bellows boots.


10000kgf electric actuators with long strokes to replace fluid-power cylinders can not only match the load capacity of hydraulic cylinders and exceed the load capacity of conventional electric linear actuators. Main application in coiling machines, decoiling machines, continuous operation process lines, tundish cars, scissor lifts, lifting platforms, robotics, continuous paint pumps, medical beds, gates, dampers, oven and processing tank doors, antennas, and agricultural equipment.


10000kgf electric actuators with long strokes to replace fluid-power cylinders Load Capacity, Linear Speed and Motor Power

1. 10000 Kgf load capacity, 21mm/s (1260mm/min) slow linear speed, with 5.5kw power electric motor.

2. 10000 Kgf load capacity, 42mm/s (2520mm/min) medium linear speed, with 11kw power electric motor.
