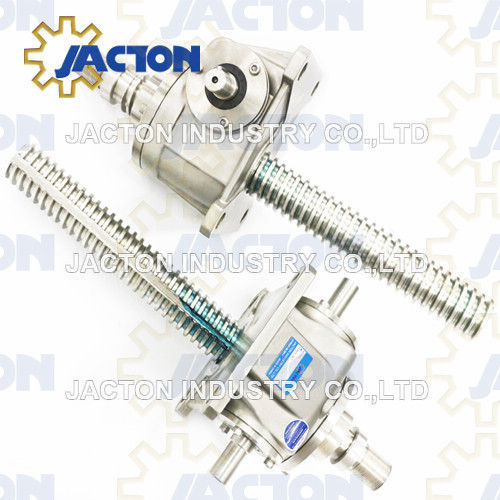

2.5T Stainless Steel Worm Gear Screw Jack are ideal for use in demanding environments where corrosion resistance is required. All external components are manufactured from 300 series Stainless Steel materials. These jacks use a stainless steel worm with a high strength bronze worm gear(drive sleeve).
1. Model JSS-2.5T, Maximum static load 2.5 Ton.
2. Lifting screw sizes Tr 30x6. Customized stroke length.
3. Translating, anti-rotation (keyed) and rotating screw configurations.
4. High ratio 6:1, Medium ratio 12:1, Low ratio 24:1.
5. Can be connected together in systems so that multiple units can be operated and controlled together.
6. Hand crank manual operation, Electric motor driven or both together.
1. Lifting screw: stainless steel 304
2. Input worm shaft: stainless steel 304
3. Worm gear or travelling nut: bronze
4. Housing: stainless steel 304
5. Bearings: bearing steel as standard. If underwater application, required stainless steel 304 bearing
6. Covers of input worm shaft: stainless steel 304
7. Top covers of housing: stainless steel 304
8. Protective tube: stainless steel 304
9. Locking screws: stainless steel 304
10. Lifting screw ends (top plate, clevis end, threaded end, plain end, fork end or rod end): stainless steel 304
11. Motor flanges: stainless steel 304
